BCL3 – BLDC Motor

Overview

  • 3 Phase outer rotor type DC Brushless Motor
  • Driver circuit built-in
  • Bearing: Oil retaining bearing
  • Connection: Connector
    (JST: BM05B-SRSS-TB or
    JCTC: 11002W00-5P-S)
  • Interface (5 terminals)
    • Power Supply: 4.5 – 26.4V
    • GND: (Short to Frame)
    • FG: 6 pulses per rotation, 5V, square-wave
      The switchable 1FG or 1/2FG or 1/3FG
    • VSP or PWM: Rotational speed adjustment terminal
      VSP  : 0V – 5V (1V> : stop, 4.4V< : Full acceleration)
      PWM : 0 − 5V, 15 – 100kHz (ON-level : 2V – 5V)
      (Duty3%> : stop, Duty100% : Full acceleration)
    • CW / CCW switch
      0.8V> : CCW, 1.3V – 2.0V : Brake-mode, 2.5V< : CW





Specifications

No load speed
[min-1]
Starting torque
[%]
Speed at maximal efficiency
[min-1]
Maximum output power
[W]
Speed at max output power
[min-1]
Life at 20 deg.C
[hour]
550050
(at 3mN·m)
43002.0
(at 7mN·m)
27005000

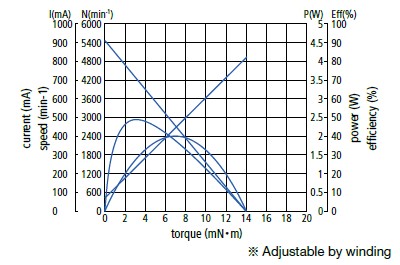

* Major characteristic parameters at 12V.

Please contact our sales for detail specification & order lot QTY. (All custom product by customer’s requirement)
