BML2 – BLDC Motor

Overview

  • 3 Phase outer rotor type DC Brushless Motor
  • Bearing : Oil retaining bearing
  • Connection : Connector or FFC or FPC
  • Circuit : Can respond to the mounting of the drive IC (outside of the rotor area)
  • Interface : Coil terminal
    Input & Output of Hall sensor or Hall IC
  • Shaft : It is possible to respond to the change of length, the shape of D-cut, the addition of the gear, etc..
BML2 - BLDC
BML2 - BLDC Motor





Specifications

No load speed
[min-1]
Starting torque
[mN·m]
Starting current
[mA]
Starting torque
[%]
Speed at maximal efficiency
[min-1]
Maximum output power
[W]
Speed at max output power
[min-1]
Life at 20 deg.C
[hour]
31004.617538
(at 1.2
mN·m)
23000.38
(at 2.2
mN·m)
15005000

* Major characteristic parameters at 12V.

Please contact our sales for detail specification & order lot QTY. (All custom product by customer’s requirement)

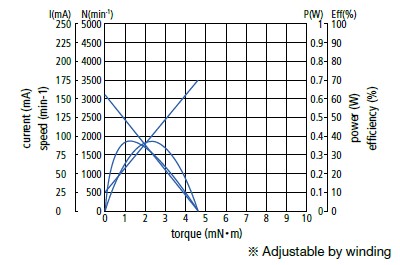

BML2 - BLDC Motor - Graphic
