DIX42B10 – BLDC Motor

Overview

  • dia. 42 × L41 DC Brushless motor inner rotor type
  • Motor Type : 3 Phase DC Brushless Motor
  • Direction of Rotation : CW and CCW
  • Driver circuit built-in.
  • Speed control by PWM DUTY.
  • Compact, Light Weight and High Output
  • High Efficiency
  • Low Inertia
  • Overcurrent and Locked Rotor Protection
  • There is an encoder installation type. (DIA42B10)
  • The gear machined output, shaft type is available as an option.

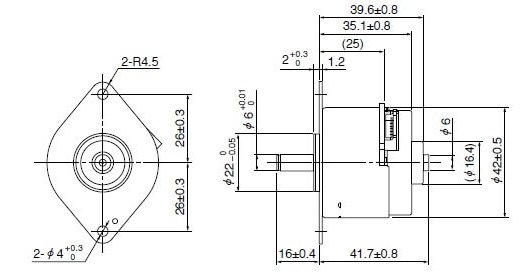

DIX42B10 - BLDC
DIX42B10 - BLDC Motor







Specification

Min.Nom.Max.Units
Operating Voltagefor Motor21.62426.4VDC
for Circuit4.555.5VDC
Continuous Rating Power6W
Short Time Rating Power10W
Rotor Inertia (Reference Value)18g▪cm2
Operating Temperature02050deg.C
Operating Humidity1590%RH
Usable Input PWM Duty10100%
Motor Weight150g

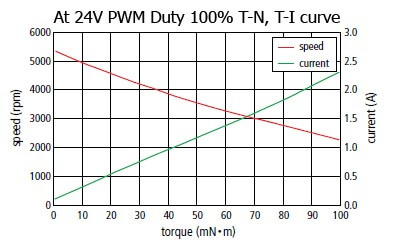

DIX42B10 - BLDC Motor - Graphic
