DNQ06M (Nd Mg) – BLDC Motor
Overview

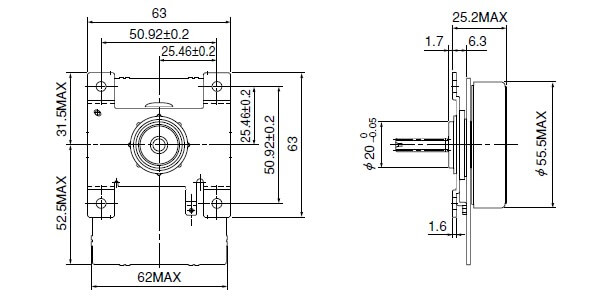

- dia. 55 × L25 DC Brushless motor outer rotor type
- Motor Type : 3 Phase DC Brushless Motor
- Direction of Rotation : CW and CCW
- Control-Driver circuit built-in.
- Compact, Light Weight and High Output
- High Efficiency
- Low Noise
- Overcurrent and Locked Rotor Protection
- The gear machined output, shaft type is available as an option.
Specification
| Min. | Nom. | Max. | Units | |
| Operating Voltage | 21.6 | 24 | 26.4 | VDC |
| Operating Speed | 600 | 3000 | min-1 | |
| Continuous Rating Power | 23 | W | ||
| Rotor Inertia（ Reference Value） | 386 | g▪cm2 | ||
| Operating Temperature | 0 | 20 | 50 | deg.C |
| Operating Humidity | 15 | 90 | %RH | |
| Motor Weight | 220 | g |
Please contact our sales for detail specification & order lot QTY. (All custom product by customer’s requirement)
