DNQ10M (Nd Mg) – BLDC Motor


  • dia. 55 × L30 DC Brushless motor outer rotor type
  • Motor Type : 3 Phase DC Brushless Motor
  • Direction of Rotation : CW and CCW
  • Control-Driver circuit built-in.
  • Compact, Light Weight and High Output
  • High Efficiency
  • Low Noise
  • Overcurrent and Locked Rotor Protection
  • The gear machined output, shaft type is available as an option.
DNQ10M (Nd Mg)
DNQ10M (Nd Mg) - BLDC Motor





Operating Voltage21.62426.4VDC
Operating Speed6003000min-1
Continuous Rating Power40W
Rotor Inertia( Reference Value565g▪cm2
Operating Temperature02050deg.C
Operating Humidity1590%RH
Motor Weight270g

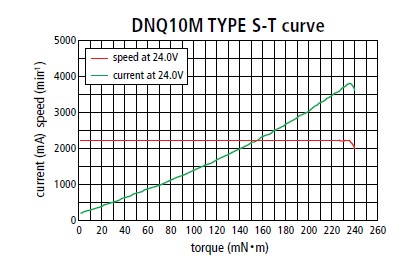

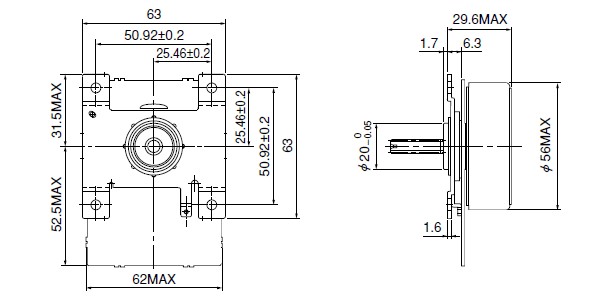

DNQ10M (Nd Mg) - BLDC Motor - Graphic


Please contact our sales for detail specification & order lot QTY. (All custom product by customer’s requirement)
