DNQ10MF (Fe Mg) – BLDC Motor for Home Appliances
Overview

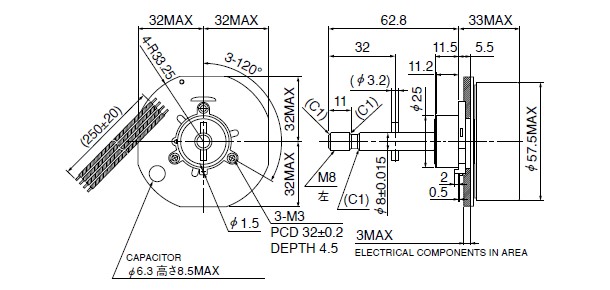

- dia. 57 × L33 DC Brushless motor outer rotor type
- Motor Type : 3 Phase DC Brushless Motor
- Direction of Rotation : CW and CCW
- Control-Driver circuit built-in.
- Compact, Light Weight and High Output
- High Efficiency
- Low Noise
- Overcurrent and Locked Rotor Protection
Specifications
| Min. | Nom. | Max. | Units | |
| Operating Voltage | 21.6 | 24 | 26.4 | VDC |
| Operating Speed | 300 | 1000 | 3000 | min-1 |
| Continuous Rating Power | 10 | 15 | W | |
| Rotor Inertia（ Reference Value） | 520 | g▪cm2 | ||
| Operating Temperature | 0 | 50 | deg.C | |
| Operating Humidity | 15 | 90 | %RH | |
| Motor Weight | 250 | g |
Please contact our sales for detail specification & order lot QTY. (All custom product by customer’s requirement)
