DNQ12M (Nd Mg) – BLDC Motor for Home Appliances

Overview

  • dia. 55 × L30 DC Brushless motor outer rotor type
  • Motor Type : 3 Phase DC Brushless Motor
  • Direction of Rotation : CW and CCW
  • Control-Driver circuit built-in.
  • Compact, Light Weight and High Output
  • High Efficiency
  • Low Noise
  • Overcurrent and Locked Rotor Protection
DNQ12M (Nd Mg)
DNQ12M (Nd Mg) - BLDC Motor for Home Appliances





Specifications

Min.Nom.Max.Units
Operating Voltage21.62426.4VDC
Operating Speed30010003000min-1
Continuous Rating Power3540W
Rotor Inertia( Reference Value564g▪cm2
Operating Temperature050deg.C
Operating Humidity1590%RH
Motor Weight300g

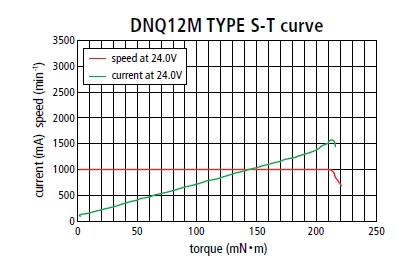

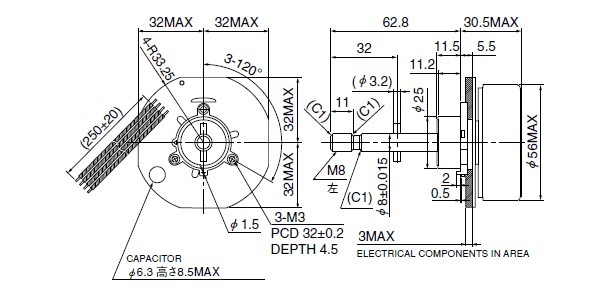

DNQ12M (Nd Mg) - BLDC Motor for Home Appliances - Graphic



Please contact our sales for detail specification & order lot QTY. (All custom product by customer’s requirement)
