DNQ12MF (Fe Mg) – BLDC Motor for Home Appliances


  • dia. 57 × L33 DC Brushless motor outer rotor type
  • Motor Type : 3 Phase DC Brushless Motor
  • Direction of Rotation : CW and CCW
  • Control-Driver circuit built-in.
  • Compact, Light Weight and High Output
  • High Efficiency
  • Low Noise
  • Overcurrent and Locked Rotor Protection
DNQ12MF (Fe Mg)
DNQ12MF (Fe Mg) - BLDC Motor for Home Appliances




Operating Voltage21.62426.4VDC
Operating Speed30010003000min-1
Continuous Rating Power1520W
Rotor Inertia( Reference Value500g▪cm2
Operating Temperature050deg.C
Operating Humidity1590%RH
Motor Weight250g

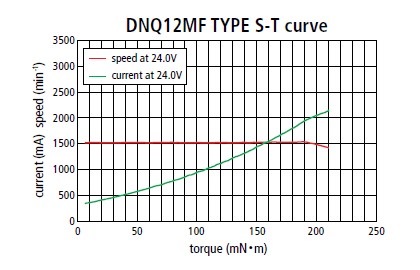

DNQ12MF (Fe Mg) - Graphic


Please contact our sales for detail specification & order lot QTY. (All custom product by customer’s requirement)
