DNQ12MF (Fe Mg) – BLDC Motor


  • dia. 57 × L32 DC Brushless motor outer rotor type
  • Motor Type : 3 Phase DC Brushless Motor
  • Direction of Rotation : CW and CCW
  • Control-Driver circuit built-in.
  • Compact, Light Weight and High Output
  • High Efficiency
  • Low Noise
  • Overcurrent and Locked Rotor Protection
  • The gear machined output, shaft type is available as an option.
DNQ12MF (Fe Mg)
DNQ12MF (Fe Mg) - BLDC Motor




Operating Voltage21.62426.4VDC
Operating Speed6003000min-1
Continuous Rating Power30W
Rotor Inertia( Reference Value556g▪cm2
Operating Temperature02050deg.C
Operating Humidity1590%RH
Motor Weight290g

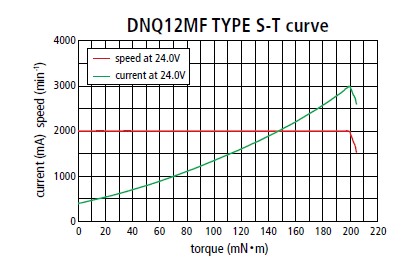

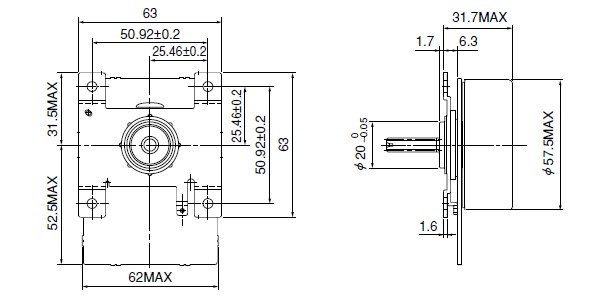

DNQ12MF (Fe Mg) - BLDC Motor - Graphic


Please contact our sales for detail specification & order lot QTY. (All custom product by customer’s requirement)
