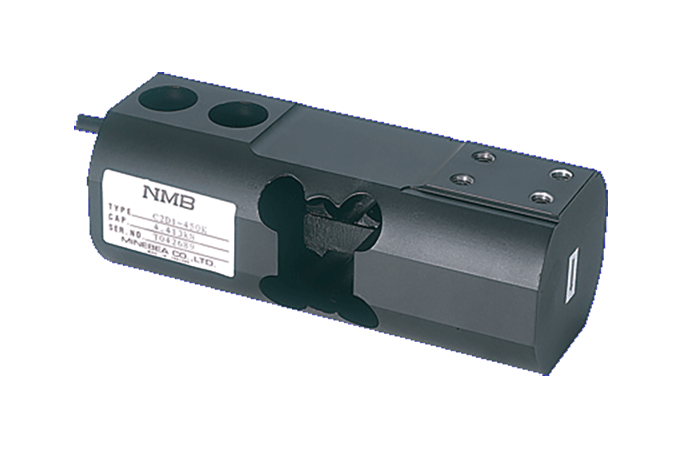

C2D1 series

C2D1 series

C2D1

Feature

  • High capacity and applicable for commercial scale.
  • Because the output voltage is adjusted, it is available in both single point / multipoint.
    Approved OIML R60 Class C4.

Specifications

OIML Standard
OIML accuracy classC4
Maximum scale interval4 000
Model No. (Capacity)100K120K300K450K600K800K
Rated capacity100 kg120 kg300 kg450 kg600 kg800 kg
Model No. (Capacity)10 g12 g30 g45 g60 g80 g
Safe overload150 %R.C.
Ultimate overload200 %R.C.
Rated output2 mV/V(＋0.004, -0)mV/V
Non-linearity0.018 %R.O.
Hysteresis0.018 %R.O.
Repeatability0.010 %R.O.
Creep0.012 %R.O./30 min
Creep recovery0.012 %R.O./30 min
Excitation, recommended12 V or less
Excitation, maximum16 V
Zero balance±0.1 mV/V
Input resistance380 Ω ~ 460 Ω
Output resistance347 Ω ~ 353 Ω
Insulation resistance2 000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated-10 ℃ ~ 40 ℃
Temp. range, safe-20 ℃ ~ 70 ℃
Temp. effect on zero0.014 %R.O./10 ℃
Temp. effect on output0.010 %LOAD/10 ℃
Cableφ6.3, 4-cores shielded 6 m cable directly attached, Y-crimp type terminal lugs are attached at cable
end.
Class of protectionIP65 or equivalent
Material of elementAlluminium alloy
Durability1 000 000 times with
rated load applied.
Effect of eccentric load ･ The size of loading plate : 450 mm x 650
mm at maximum.
･ The center of loading plate and also the center of load cell should be the same position.
･ Error is within 0.02 %R.O. applied with 1/2 of
rated capacity at the position of 200 mm of eccentricity.

Table of P/N

Parts No.Rated capacityNatural frequencyRated displacementWeight
C2D1-100K100 kg450 Hz0.13 mmApprox.1.9 kg
C2D1-120K120 kg
C2D1-300K300 kg570 Hz0.24 mm
C2D1-450K450 kg620 Hz0.40 mm
C2D1-600K600 kg450 Hz0.43 mmApprox.3.45 kg
C2D1-800K800 kg500 Hz0.46 mmApprox.3.5 kg

Download

CAD files (DXF)Specification sheet (PDF)Instruction Manual (PDF)
C2D1-100K ~ 450K
(38KB)
C2D1-600K ~ 800K
(32KB)		C2D1-100K~450K
No.K102872-2-H (182KB)
C2D1-600K ~ 800K
No.K102970-2-I (173KB)		No.ENKT60245-1-G (31KB)
