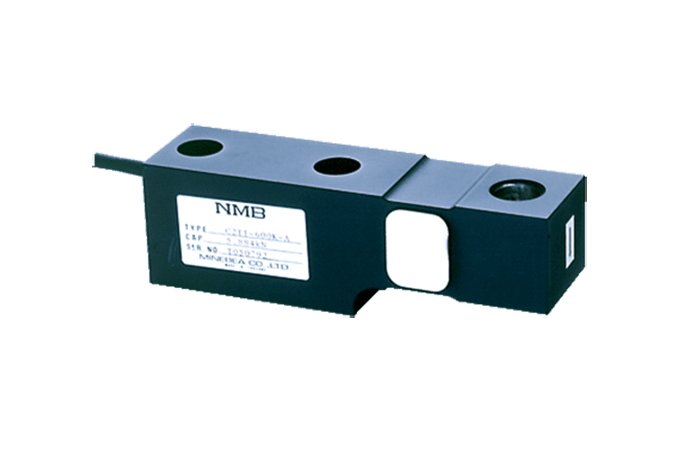

C2T1 – A series

C2T1 – A series

C2T1 - A

Feature

  • Applied for multi-point method platform scale
  • High-accuracy Load Cell

Specifications

Rated capacity2.942
kN {300 kgf} ~ 68.65 kN {7 tf}
Safe overload150 %R.C.
Ultimate overload200 %R.C.
Rated output2 mV/V±0.002 mV/V
Non-linearity0.025 %R.O.
Hysteresis0.025 %R.O.
Repeatability0.025 %R.O.
Creep0.03 %R.O./20 min
Creep recovery0.03 %R.O./20 min
Excitation, recommended12 V or less
Excitation, maximum16 V
Zero balance±0.02 mV/V
Input resistance420 Ω (+30 Ω, -20 Ω)
Output resistance350 Ω±5 Ω
Insulation resistance2 000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated-10 ℃ ~ 50 ℃
Temp. range, safe-20 ℃ ~ 70 ℃
Temp. effect on zero0.05 %R.O./10 ℃
Temp. effect on output0.002 %LOAD/10 ℃
Cableφ6.3, 4-cores shielded 6 m cable directly attached, Y-crimp type terminal lugs are attached at cable
end.
Class of protectionIP64 or equivalent
Material of elementAlluminium alloy (C2T1-7T : Alloy steel)
Durability1 000 000 times with
rated load applied.

Table of P/N

Parts No.Rated capacityNatural frequency
(Hz)
Rated displacement
(For reference only)
Weight
(Approx.kg)
C2T1-300K-A2.942 kN {300 kgf}3 7000.251.1
C2T1-600K-A5.884 kN {600 kgf}5 000
C2T1-1T-A9.807 kN {1 tf}5 5000.281.3
C2T1-2T-A19.61 kN {2 tf}6 8000.32
C2T1-3T-A29.42 kN {3 tf}5 5000.402.4
C2T1-4T-A39.23 kN {4 tf}6 700
C2T1-7T68.65 kN {7 tf}3 5000.608.4

Download

CAD files (DXF)Specification sheet (PDF)Instruction Manual (PDF)
C2T1-300K-A (26KB)
C2T1-600K-A (26KB)
C2T1-1T-A (26KB)
C2T1-2T-A (26KB)
C2T1-3T-A (26KB)
C2T1-4T-A (26KB)
C2T1-7T (24KB)
C2T1-300K~4T-A
No.KT53151-2-A (147KB)
C2T1-7T
No.KT53152-2-A (134KB)
No.ENKT60246-1 (53KB)
