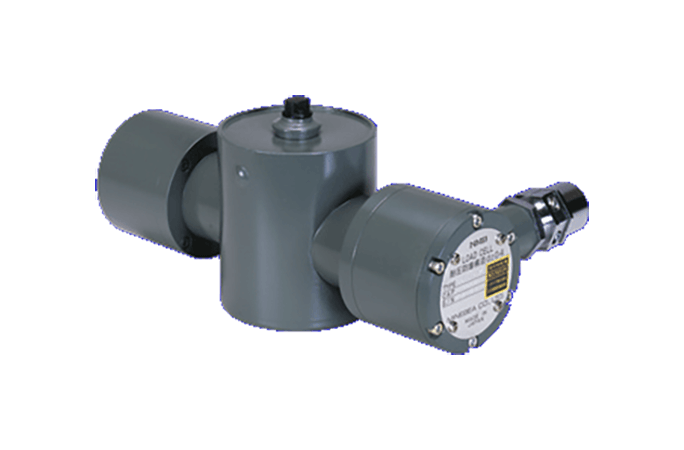

CCP1-Z series

CCP1-Z series

CCP1 - Z

Feature

  • Canister type, suitable for high explosion risk environment such as with flammable liquid or gas, or in pharmaceutical or petrochemical application.
    Passing No. of model authorization
    CCP1-200K ~ 1T-Z : No.37835
    CCP1-2T ~ 5T-Z : No.37836
    CCP1-10T-Z : No.37837
    CCP1-20T-Z : No.37838
    CCP1-30T-Z : No.37839
    CP1-50T-Z : No.37840
    Classification of explosive & flammability 2G4
    Hazardous areas to be used 1 zone and 2 zone
    Limit of temperature raise at operation

    70 ℃ (In case of operating temperature at 40 ℃)

Specifications

Rated capacity1.961
kN {200 kgf}~196.1 kN {20 tf}
Safe overload150 %R.C.
Ultimate overload200 %R.C.
Rated output2.8 mV/V±0.002 8 mV/V
(CCP1-2T~20T-Z : 3 mV/V±0.003 mV/V)
Non-linearity0.05 %R.O.
Hysteresis0.02 %R.O.
Repeatability0.02 %R.O.
Excitation, recommended12 V or less
Excitation, maximum20 V
Zero balance±0.028 mV/V (CCP1-2T~20T-Z : 0.03
mV/V)
Input resistance350 Ω±3.5 Ω
Output resistance350 Ω±5 Ω
Insulation resistance2 000 MΩ or more (DC50 V)(between bridge and main body)
Temp. range, compensated-10 ℃ ~ 70 ℃
Temp. range, safe-20 ℃ ~ 100 ℃
Temp. effect on zero0.03 %R.O./10 ℃
Temp. effect on output0.03 %LOAD/10 ℃
CableCAB-501 should be
used. (Option)
(φ10, 6-cores shielded cable is attached.)
Class of protectionIP64 or equivalent
Material of elementAlloy steel
PaintPainted with epoxy
resin.
(Munsell 6GY3.5/2 half-polished resemblance color)
Durability1 000 000 times with
rated load applied.
Terminal boxFixed with solderless
terminal screws on the terminal plate
Cable retracting methodExplosion-proof packing
type
Piping methodThick steel conduit
tube

Table of P/N

Parts No.Rated capacityNatural frequencyRated displacementWeight
CCP1-200K-Z1.961 kN {200 kgf}1 200 Hz0.18 mmApprox.5.7 kg
CCP1-300K-Z2.942 kN {300 kgf} 1 400 Hz0.17 mm
CCP1-500K-Z4.903 kN {500 kgf}1 800 Hz0.15 mm
CCP1-1T-Z9.807 kN {1 tf}2 800 Hz0.13 mm
CCP1-2T-Z19.61 kN {2 tf}2 100 Hz0.17 mmApprox.5.8 kg
CCP1-3T-Z29.42 kN {3 tf}2 600 Hz0.16 mm
CCP1-5T-Z49.03 kN {5 tf}3 500 Hz0.13 mm
CCP1-10T-Z98.07 kN {10 tf}2 500 Hz0.18 mmApprox.13.5 kg
CCP1-20T-Z196.1 kN {20 tf}1 800 Hz0.24 mmApprox.28.5 kg

Download

CAD files (DXF)Specification sheet (PDF)Instruction Manual (PDF)
CCP1-200K-Z (44KB)
CCP1-2T-Z (44KB)
CCP1-10T-Z (42KB)
CCP1-20T-Z (42KB)
No.KT52285-2 (47KB)
CCP1-2T~20T (56KB)
No.KT60294-1 (74KB)
