CL - B

Feature

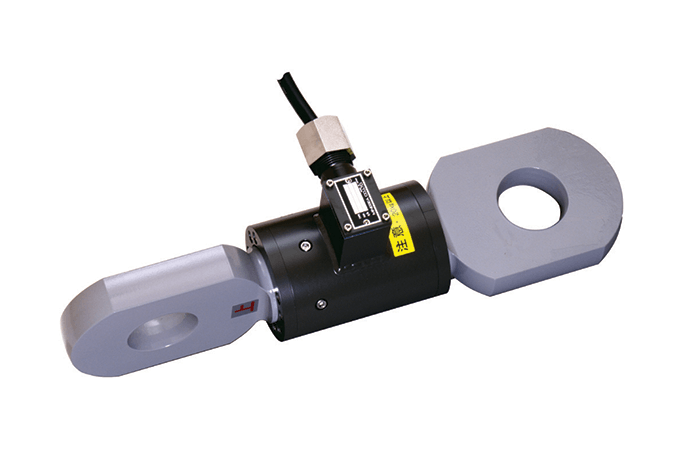

  • General purpose tension load cell ideal for measuring the tension force of cable in crane
    applications.

Specifications

Rated capacity49.03
kN {5 tf} ~ 490.3 kN{50 tf}
Safe overload300 %R.C.
Ultimate overload500 %R.C.
Rated output0.5 mV/V±0.005 mV/V
Non-linearity0.5 %R.O.
Hysteresis0.2 %R.O.
Repeatability0.3 %R.O.
Excitation, recommended10 V or less
Excitation, maximum12 V
Zero balance±0.025 mV/V
Input resistance600 Ω±6 Ω
Output resistance600 Ω±6 Ω
Insulation resistance2 000 MΩ or more (DC50
V) (between bridge and main body)
Temp. range, compensated-5 ℃ ~ 60 ℃
Temp. range, safe-15 ℃ ~ 75℃
Temp. effect on zero0.1 %R.O./10 ℃
Temp. effect on output0.1 %LOAD/10 ℃
Cableφ14, 4-cores chielded
5 m cable directly attached. Cable end is separated
with solder.
Class of protectionIP64 or equivalent
Material of elementAlloy steel
PaintPainted by epoxy resin
(Only for cover)
(Munsell 6GY3.5/2 half polished resemblance color)
Durability1 000 000 times with
rated load applied.

Table of P/N

Parts No.Rated capacityNatural frequencyRated displacementWeight
CL-5T-B49.03 kN {5 tf}11 000 Hz0.12 mmApprox.17.5 kg
CL-10T-B98.07 kN {10 tf}10 000 Hz0.15 mmApprox.32 kg
CL-20T-B196.1 kN {20 tf}8 000 Hz0.16 mmApprox.60 kg
CL-30T-B294.2 kN {30 tf}0.18 mmApprox.86 kg
CL-40T-B392.3 kN {40 tf}7 600 Hz0.20 mmApprox.173 kg
CL-50T-B490.3 kN {50 tf}0.24 mmApprox.227 kg

Download

CAD files (DXF)Specification sheet (PDF)Instruction Manual (PDF)
CL-5T-B (42KB)
CL-10T-B (42KB)
CL-20T-B (41KB)
CL-30T-B (40KB)
CL-40T-B (41KB)
CL-50T-B (40KB)
No.KT51605-2 (177KB) No.KT60249-1 (37KB)
Adobe Acrobat Reader is required to refer the Specification data sheet.
Acrobat Reader is a registered trademark of Adobe Systems Ltd.
The download of Adobe Acrobat Reader is here.
