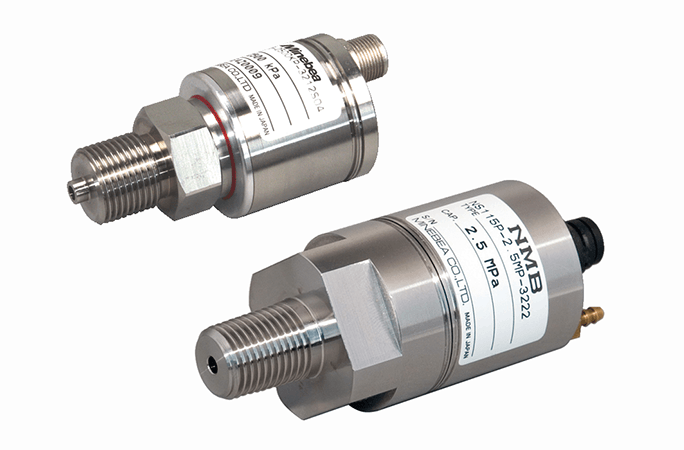

NS115P / NS115 Series

NS115P / NS115 Series

NS115P / NS115

Features:

  • Excellent in long term stability.
    0.1 % R.O. accuracy is available (including non-linearity, hysteresis and repeatability)
    Small size and light weight, horizontal cable output type is possible.
    Excellent in solidity and surge pressure
    Attached zero point adjustment
    *Application
    Automatic transmission testing equipment, solenoid valve testing device, fuel cell evaluation device

Specifications

Rated capacity500 kPa ~ 10 MPa (NS115P / High-accuracy type) 5 MPa ~ 50 MPa (NS115 / Standard))
Safe overload200 % R.C.
Ultimate overload300 % R.C.
Accuracy0.1 % R.O. (NS115P / High-accuracy type)
0.5 % R.O. (NS115 / Standard type))
(including non-linearity, hysteresis and repeatability)
Rated outputCurrent: 4 mA ~ 20 mA (2-wire method, Load resistance ≤500 ohm, at 24 V)
Voltage: 0 V ~ 5 V, 0 V ~ 10 V (Load resistance ≥5 kohm).
Zero adjustment range±1 %
Power supply voltageDC 24 V(18 V ~ 28 V)
Power consumptionApprox. 30 mA
Insulation resistance≥1,000 MΩ (DC 50 V)
Temp. range, compensated-20 ℃ ~ 70 ℃
Temp. range, safe-30 ℃ ~ 80 ℃
Temp. effect on zero±0.15 % R.O./10 ℃ (NS115P / High-accuracy type)
0.5 % R.O./10℃ (NS115 / Standard type)
Temp. effect on output±0.15 % LOAD/10℃ (NS115P / High-accuracy type
0.5 % LOAD/10℃ (NS115 / Standard type)
O-ring sealFKM4-class D (High-accuracy type), NBR (Standard type)
Dependent on the medium.
Class of protectionIP67 or equivalent
Material of pressure holeSUS316L (High-accuracy type), SUS304L (Standard type)
Material of coverSUS316 (High-accuracy type), Aluminum (Standard type)
Material of pressure diaphragmSingle crystal sapphire
Mounting screw1/8 ・ 1/4 ・ 3/8G{PF}, {PT}
WeightNS115: Approx. 200 g, NS115P: 250 g (main body only)
Tightening torque20 N・m ~ 40 N・m

Table of P/N

Parts No.Rated capacity
NS115P-500KP*-***2500 kPa
NS115P-1MP*-***21 MPa
NS115P-2MP*-***22 MPa
NS115P-2.5MP*-***22.5 MPa
NS115P-5MP*-***25 MPa
NS115P-10MP*-***210 MPa
NS115-5MP*-***25 MPa
NS115-10MP*-***210 MPa
NS115-20MP*-***220 MPa
NS115-25MP*-***225 MPa
NS115-30MP*-***230 MPa
NS115-35MP*-***235 MPa
NS105-50MP*- ***250 MPa

Download

CAD files (DXF)Specification sheet (PDF)Instruction manual (PDF)
NS115 (36KB)
NS115P (42KB)
NS115P (Accurate type)
No.KS50700 (145KB)
Standard
No.KS50473 (52KB)
